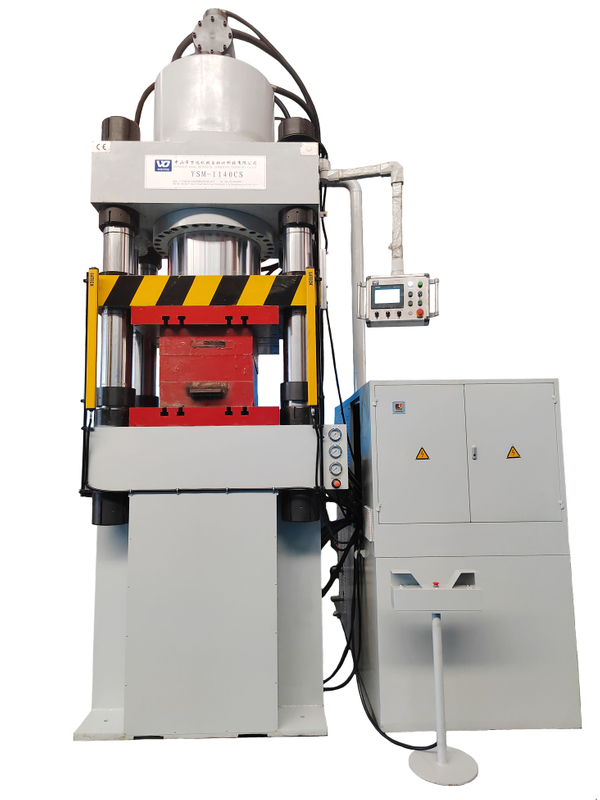

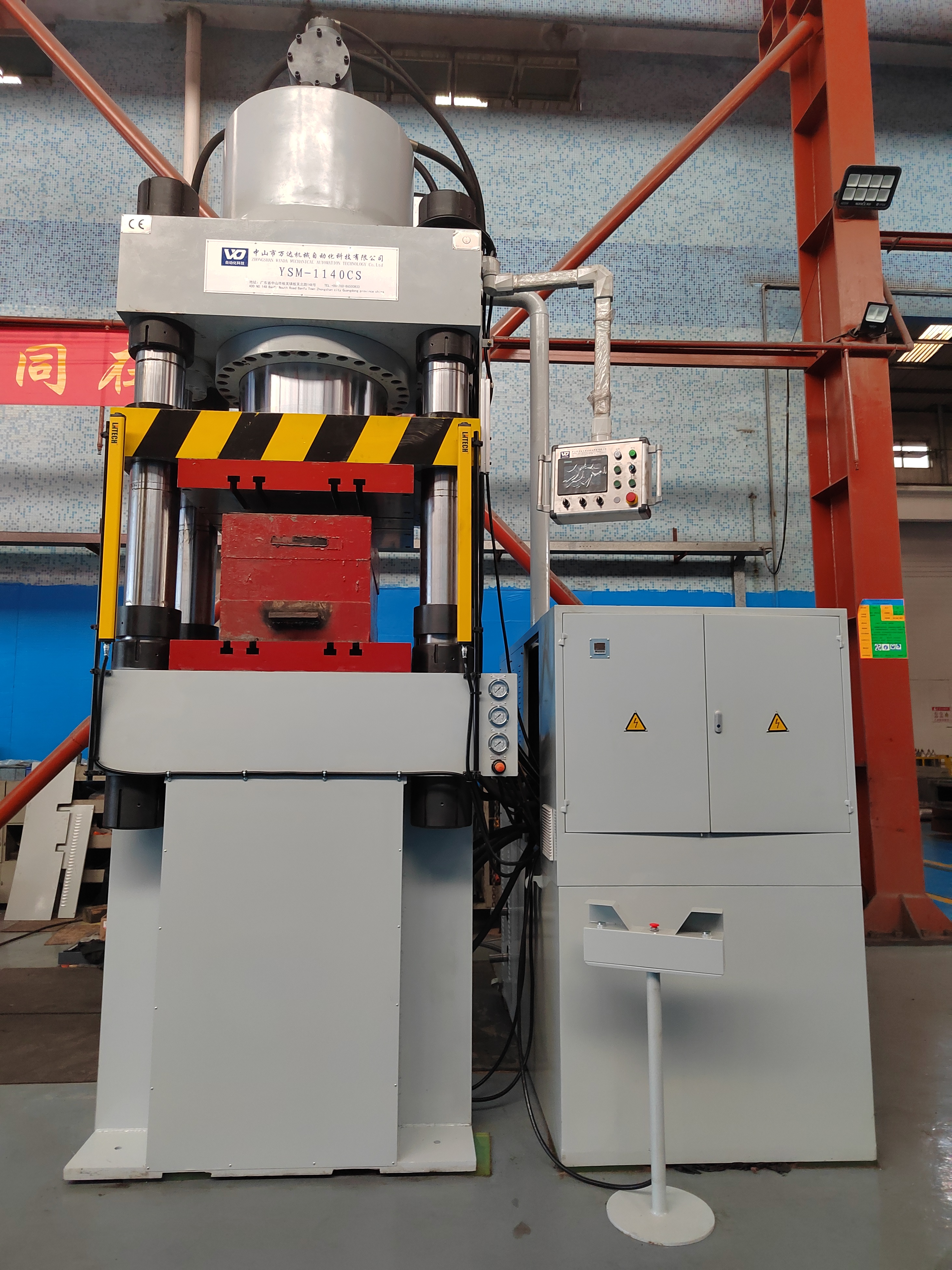

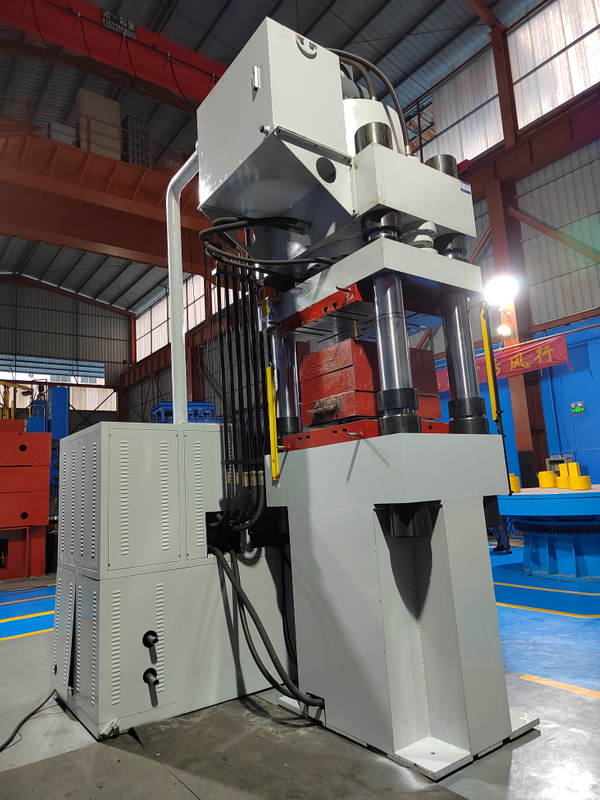

YSM-1140CS

1、本设备适用于各种金属材料及可塑性材料的精密冷、热锻压、反挤压拉伸、冲裁、冲孔、弯曲、翻边、成型以及大型结构件的校正、汽摩配件冷、热挤压压成型工艺。
2、机器具有独立的液压系统和电气系统，并采用触摸屏显示位移与产品计数、触摸屏+PLC+光栅位移尺组合，方便设置与控制滑块上限、快转慢、下限和保压时间。机器具有独立的液压系统和电气系统，可实现手动调整和半自动及自动三种工作方式。每种工作状态均可实现精确位移定程及定压两种压制方式。
3、机器使用条件:
工作环境温度:0℃-55℃相对湿度:不大于 85%电源电压:380V±5% 50Hz
海拔高度:不超过1500m
液压系统使用介质:68#抗磨液压油

1. This equipment is suitable for precision cold and hot forging, reverse extrusion stretching, punching, punching, bending, flanging, forming of various metal materials and plastic materials, as well as calibration of large structural components and cold and hot extrusion forming processes for automotive and motorcycle parts.
2. The machine has independent hydraulic and electrical systems, and adopts a touch screen display for displacement and product counting, as well as a combination of touch screen+PLC+grating displacement ruler, making it easy to set and control the upper limit, fast/slow rotation, lower limit, and holding time of the slider. The machine has independent hydraulic and electrical systems, which can achieve manual adjustment and three working modes: semi-automatic and automatic. Each working state can achieve two pressing methods: precise displacement and constant pressure.
3. Machine usage conditions:
Working environment temperature: 0 ℃ -55 ℃ Relative humidity: not greater than 85% Power supply voltage: 380V ± 5% 50Hz
Altitude: not exceeding 1500m
Hydraulic system medium: 68 # anti-wear hydraulic oil

状态：

数量：



询价加入询价篮

型号：
YSM-1140CS
产品品牌：
万达

产品描述

产品描述

主要技术参数Main technical parameters:：

序号NO.	项目Item		单位Unit	规格spec.
1	主缸公称力Master cylinder nominal force		KN	1000(可调）(Adjustable)
2	滑块行程Slide stroke		mm	300(可调）(Adjustable)
3	液体工作压力Liquid working pressure		MPa	25
4	压边缸公称力 Nominal force of edge pressing cylinder		KN	1000(可调）(Adjustable)
5	压边缸行程Edge cylinder stroke		mm	200(可调）(Adjustable)
6	下退料缸力Lower ejector cylinder force		KN	200(可调）(Adjustable)
7	下退料缸行程Lower ejector cylinder stroke		mm	300(可调）(Adjustable)
8	上退料缸力upperr ejector cylinder force		KN	200(可调）(Adjustable)
9	上退料缸行程upper ejector cylinder stroke		mm	100（时间继电器控制）(Time relay control)
10	工作区开口高度Height of workspace opening		mm	800（不含垫板）(Excluding padding)
11	工作台上平面距地面距离Distance between the surface of the workbench and the ground		mm	2250
12	滑块运行速度 Slider speed	空载下行No-load down	Mm/s	220(可调）(Adjustable)
		慢下压制Slow down pressing	Mm/s	7-14(可调）(Adjustable)
		回程return	Mm/s	220(可调）(Adjustable)
13	底缸运行速度 Bottom cylinder operating speed	顶出ejection	Mm/s	80(可调）(Adjustable)
13	底缸运行速度 Bottom cylinder operating speed	退回return	Mm/s	被动回程Passive return
14	工作台尺寸Table size	左右（柱内）L.R(inside the column)	mm	1000
14	工作台尺寸Table size	前后（边缘）F.B(edges)	mm	1000
15	工作台垫板尺寸 Dimensions of bench plate	左右L.R	mm	940
15	工作台垫板尺寸 Dimensions of bench plate	前后F.B	mm	1000
16	伺服电机功率Servo motor power		KW	60.5
17	冷却方式Cooling method		油压机	15000Kcal/h

1 (19)
