Y27-500KS框架式精密伺服数控液压机

特点: 主机机身采用框架式结构,工作方式选择:有调整、半自动(单次循环)两种工作规范,有定压成型与定程成型两种成型方式。液压机上梁、滑块与油缸接合处等设置了挡油措施。结构件经先进设备进行精加工,保证了整体机身外观平整美观、精度高、刚性好。工作台尺寸应与冲压模具尺寸配合设计制作,工作台孔径T形槽及布局应与冲压模具尺寸配合设计制作。滑块为全钢板焊接箱型结构,滑块行程400,滑块设有位移传感器发讯装置和行程极限限位装置,能有效防止超程。液压系统低压大通径管道有柔性接头隔震,通径32 以上的管道均采用法兰式连接,耐震、防漏性能好;液压油工作油温不得超过50±5℃,需进行防凝露滴水处理

peculiarity:The body of the main machine adopts a frame structure, and the working mode is selected: there are two kinds of working specifications: adjustment, semi-automatic (single cycle), and there are two kinds of forming methods: constant pressure forming and fixed process forming. Oil blocking measures are provided at the joints of the upper beam, slide block and oil cylinder of the hydraulic press. The structural parts are finished by advanced equipment to ensure the appearance of the whole fuselage is smooth and beautiful, high precision and good rigidity. The size of the table should be designed and made in accordance with the size of the stamping die, and the T-slot and layout of the table aperture should be designed and made in accordance with the size of the stamping die. The slide block is all steel plate welded box structure, the slide block stroke is 400, and the slide block is equipped with displacement sensor signaling device and travel limit limiting device, which can effectively prevent overtravel. Hydraulic system low pressure large-diameter pipe with flexible joint vibration isolation, diameter of more than 32 of the pipe are used flange connection, vibration resistance, leakage resistance is good; The working oil temperature of hydraulic oil shall not exceed 50±5℃, and anti-condensation dripping treatment shall be carried out.


状态:
数量:
Y27-500KS框架式精密伺服数控液压机
Y27-500KS框架式精密伺服数控液压机
  • Y27-500KS框架式精密伺服数控液压机

  • 万达

产品描述

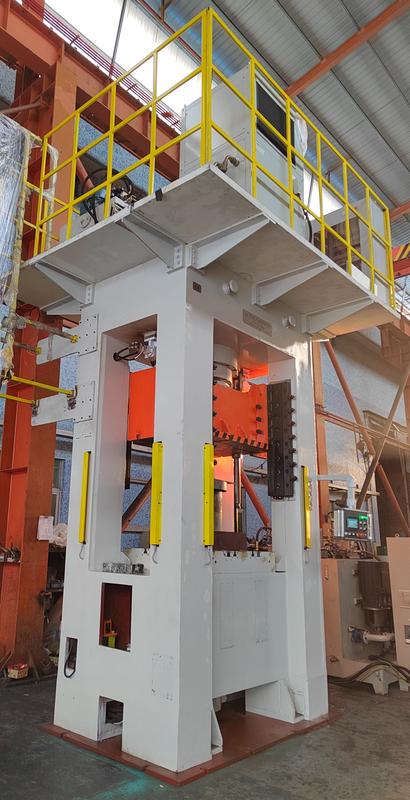

Y27-500KS框架式精密伺服数控液压机现场图Y27-500KS Frame type precision servo CNC hydraulic press site picture:

Y27-500KS框架式精密伺服数控液压机 (3)


Y27-500KS框架式精密伺服数控液压机 (2)


Y27-500KS框架式精密伺服数控液压机技术参数Y27-500KS frame type precision servo CNC hydraulic press technical parameters:

序号

NO.

项目

Item

单位

Unit

Y27-500KS

1

主缸力Master cylinder force

KN

5000(可调)(adjustable)

2

液体工作压力

Maximum working pressure of liquid

MPa

25

3

主缸行程 Master cylinder stroke

mm

400(可调) (adjustable)

4

液压垫力Hydraulic cushion force

KN

2000(可调)(adjustable)

5

液压垫行程Hydraulic pad   stroke

mm

180(可调) (adjustable)

6

滑块开口高度

Maximum opening height of the slider

mm

1100

7

滑块速度

Slider speed

空载下行No-load down

mm/s

300(可调) (adjustable)

拉伸stretch

mm/s

11-22(可调(adjustable)

回程returning

mm/s

280(可调) (adjustable)

8

液压垫速度Hydraulic pad speed


顶出ejection

mm/s

150

退回Send back

mm/s

150

9

工作台尺寸

Table size

左右left-right

mm

1100

前后front-back

mm

1000

10

顶杆孔布置

Ejector hole layout

左右left-right

列数

Number of columns

7

前后front-back

排数

Row number

7

孔心距Pit-center distance

mm

100*100

孔径aperture

mm

¢40

孔数Hole number

mm

25

11

T型槽分布

T-slot distribution

规格specification

mm

28

12

制冷方式Refrigeration mode

油冷机Oil cooler

13

伺服电机功率Servo motor power

KW

40.9

14

普通电机功率

Ordinary motor power

KW

11
